Χαρακτηριστικά

Προδιαγραφές

Condition: New

Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Retail, Construction worksÂ

Showroom Location: Philippines, Pakistan, India, Thailand, Kenya, Chile

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty of core components: 3 years

Core Components: Pressure vessel, Pump, Motor, PLC

Material: Wood

Weight: 360kg

Size: 2600*900*1800mm

Power: 5.5kw

Warranty: 3 years

Product name: Water Treatment Machine Water RO EDI System with edi

Application: Water Purification

material: Stainless steel. Glass Fiber

Function: Producing Fresh Water

Voltage: 220V / 380V

Type: Pure Water Treatment System

Πιστοποίηση: ISO9001

size: depend on the capacity

MOQ: 1 Set

Brand: TY

After Warranty Service: Video technical support, Online support, Field maintenance and repair service

Local ServiceÂ Location: Philippines, Pakistan, India, Thailand, Japan, Kenya, Chile

After-sales Service Provided: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support

Βασικές πληροφορίες

Πιστοποίηση: ISO9001

Πληρωμής & Αποστολής Όροι

Packaging Details: machine outer wapped with plastic film and Packaged in plywood or wooden box(or customized by clients)

Supply Ability: 600 Set/Sets per Month

Περιγραφή προϊόντων

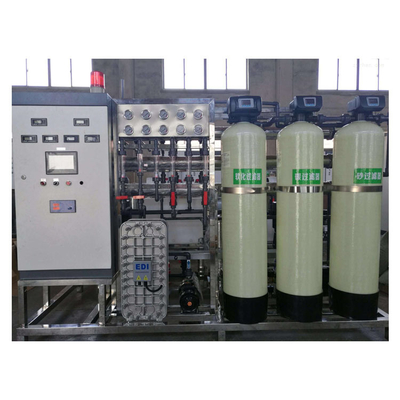

double stage 3000 gpd reverse osmosis Water Treatment Machine Water RO EDI System

Product Description

Application range

Industrial	Application
Electronic Industrial	Cleaning water of electronic components (Integrated circuits, silicon chips, display tube, electrode foil
Pharmaceutical Industry	Transfusion, injections, tablets, biochemical products, equipment cleaning, etc.
Chemical Industry	Chemical recycling water,chemical products manufacturing,chemical fertilizer
Electric Power Industry,Boiler Feed Water	Thermal power boiler, low pressure boiler power system in factories and mines
Food Industry	Pure drinking water, beverages, beer, wine, health products
Seawater, Brackish water desalination	Island, ships, offshore drilling platforms, brackish water
Drinking Water	Estate, communities, enterprises
Other	Grey water reuse, coated glass, fine chemicals, printing and dyeing

Machine Introduction:

The water supply equipment in the hospital supply room is mainly used in the hospital disinfection supply room (can be used with various cleaning machines, cleaning vehicles, autoclaving equipment) to rinse various medical equipment, utensils and articles.

Environmental requirements

Water quality of production: in line with the WP310.1\2\3-2009 and 2005 version of the Pharmacopoeia Purified Water Supply Standard and GMP Standard of the Hospital Disinfection Supply Center of the People's Republic of China;

Ion removal rate: ≥99%; endotoxin, bacterial removal rate: ≥99.9%;

Recovery rate: ≥76%;

Influent requirements: municipal water supply, water supply pressure: 0.2Mpa-0.4Mpa, total hardness ≤ 8mmol / L, inlet water temperature: 5-35 ° C;

Power supply voltage: AC380V, three-phase five-wire, reliable grounding;

Environment: Temperature: 5-40 ° C, humidity <85%, no dust and strong electromagnetic interference.

Calcium, magnesium, heavy metal removal rate >98-99%

Organic pollutant removal rate >99.9%

Raw water quality: urban drinking water

Raw water pressure: ≥0.15MPa Raw water temperature: 5-40°C

Model	Water production L/H (25 ° C)	Size(mm)	Power(kw)
TYCH-300	250	1550×600×1500	3.0
TYCH-500	500	1700×800×1600	4.5
TYCH-1000	1000	1700×800×1600	5.5
TYCH-2000	2000	2600×750×1600	8
TYCH-3000	3000	2600×900×1800	12
TYCH-4000	4000	2800×900×2000	12
TYCH-5000	5000	3900×900×2200	15

Working process of system:

Raw water → raw water pressure pump → multi-media filter → activated carbon filter → water softener → precision filter → first-stage reverse osmosis → second-stage reverse osmosis → purified water tank → pure water pump → ultraviolet sterilizer → microporous filter → Water point
